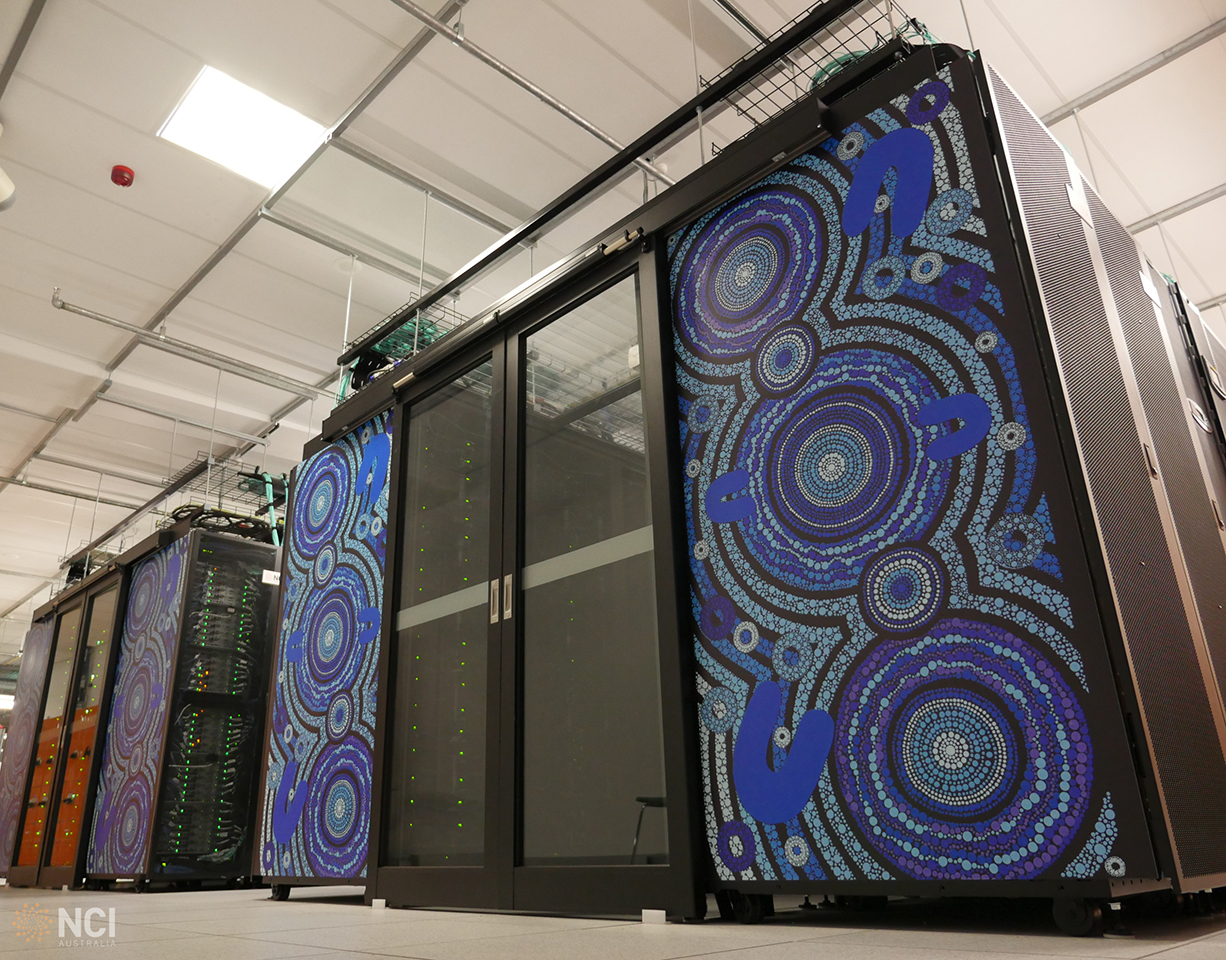

Drop-Out Panels for Aisle Containment Systems
Drop-out panels from Ceilume are a versatile and cost effective solution for cold and hot aisle containment systems.
Made in the USA from clear, 0.013 in. thick rigid vinyl, panels come standard in two styles, 2 ft. x 2ft. and 2 ft. x 4 ft. (nominal) sizes, weigh just 1.6 oz. per ft2, and are approved for use beneath fire suppression sprinklers.
Panels are easy to modify for use in a variety of framing systems, and their lightweight but durable design ensures that framed panels remain easy to install and maintain.
Drop-out panels are approved for use beneath fire suppression systems.
Ceilume's tested, listed, and approved drop-out panels can be installed beneath wet or dry fire suppression sprinklers. When exposed to heat from a developing fire, panels soften, distort, and fall from the framing system. Heat from the growing fire activates the sprinklers which, unimpeded by the panels, controls or extinguishes the fire.
- Class A per ASTM E84
- Euroclass Rating B-s2-d0
- FM Global, UL, and UES listed and approved
More information:
Polyline Drop-Out Panels
- Size: 23.875 in. x 47.875 in. (23.875 in. x 23.875 in. also available)
- Weight: 1.6 oz. per ft2
- Material: Clear, 0.013 in. thick rigid vinyl
- Light Transmittance: 87.67%
Southland Drop-Out Panels
- Size: 23.875 in. x 47.875 in. (23.875 in. x 23.875 in. also available)
- Weight: 1.6 oz. per ft2
- Material: Clear, 0.013 in. thick rigid vinyl
- Light Transmittance: 87.67%
